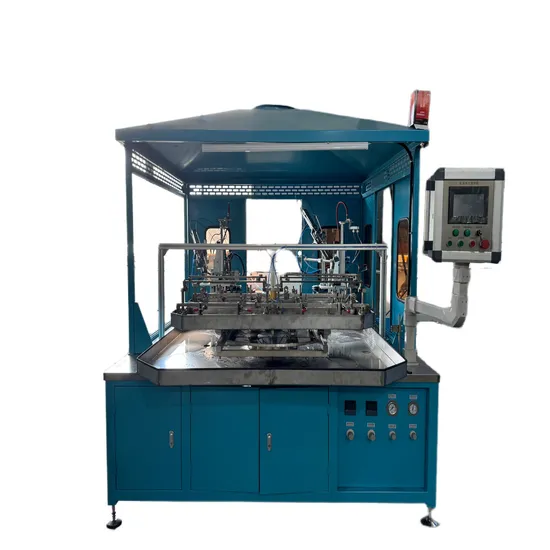

High-efficiency automated flame brazing solution with a turntable design, engineered for mass production of copper tube joints in HVAC and refrigeration systems.
Automated turntable design enables high-efficiency, continuous production and reduces labor costs.
Features dual automatic wire feeding machines for consistent and reliable solder application.
Each welding gun is equipped with a 200mm-stroke pneumatic cylinder and a 5-10mm swing mechanism for precise positioning.
Intelligent workpiece detection system activates heating and cooling only on active workstations to conserve energy.
Durable 304 stainless steel and aluminum alloy construction ensures resistance to high-temperature deformation.
Application: Brazing Copper/Aluminum Tubes
Turn-Table Stations: 4-8 (Customizable)
Compressed Air Pressure Required: 0.5-0.55MPa
LPG or CNG Pressure Required: 0.065-0.12MPa
Welding Torch Swinging Range: 5-10mm
Overall Dimensions: 2200 x 2500 x 2680mm
